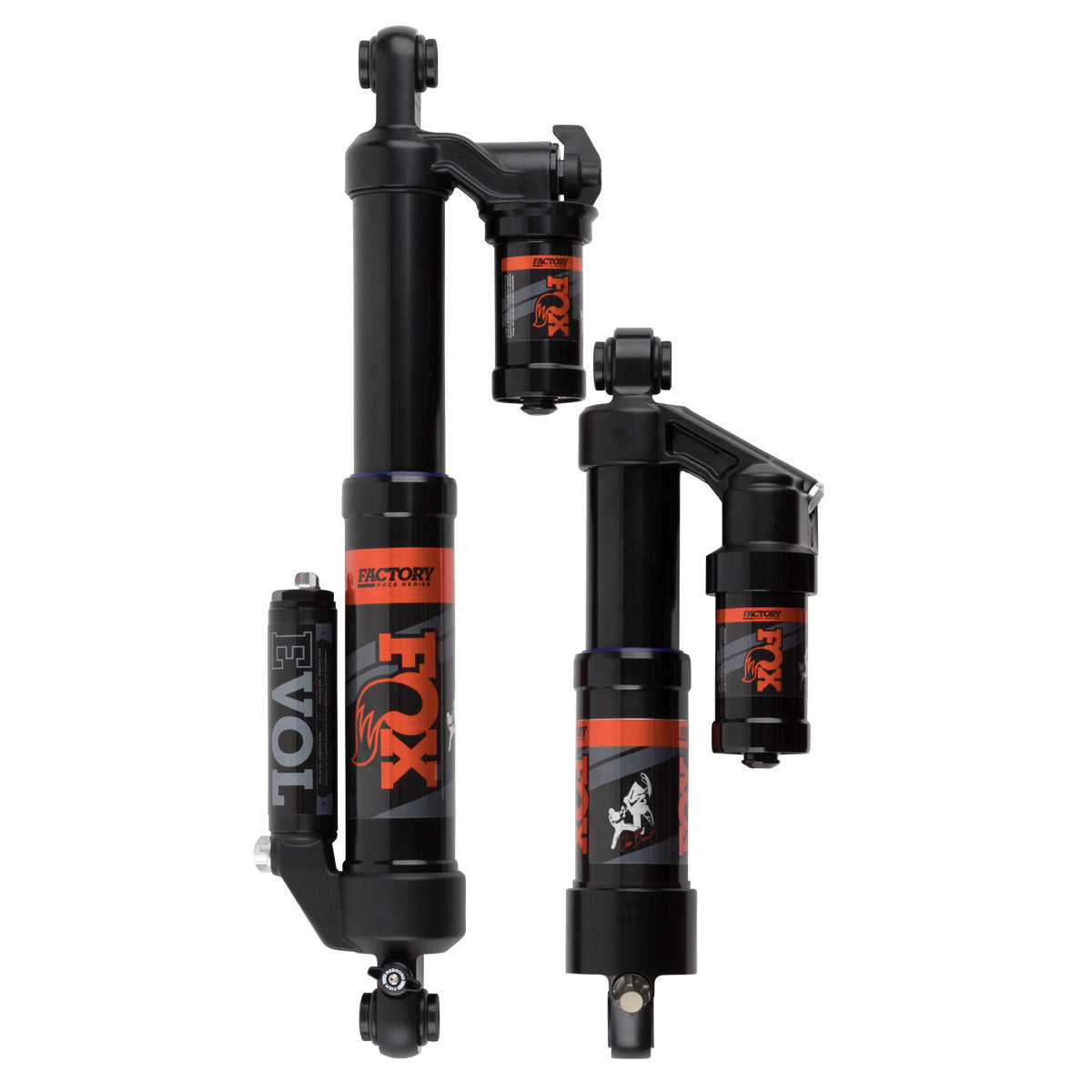

Fox Float 3 Evol QS3-QSR (Burandt) | Track (Front & Rear) Shocks

Fox Float 3 Evol QS3-QSR (Burandt) | Track (Front & Rear) Shocks

  • Categories:
Sold Out

The Burandt Series, FLOAT 3 EVOL Quick Switch (QS) is the lightest mountain sled suspension package. These shocks are tuned specifically to suit Chris Burandt’s riding style. Ride harder in the backcountry with less fatigue without a compromise of durability. Experience a new sense of control on the snow due to less outboard weight.

We designed the air-sprung mountain shocks with two primary objectives: weight reduction and ride performance. FOX optimizes the FLOAT 3 EVOL QS shocks through material reduction without a sacrifice of ride quality or structural integrity. We shaved weight from the reservoir walls and mounting hardware to save weight where it counts. The result is an air shock package in a league of its own.

FOX’s position-sensitive damping technology, with origins in desert truck racing, is now applied to the Burandt Series coil-sprung shocks. Spiral grooves inside the shock allow the oil to flow around the main piston reducing damping force in the ride zone for a plush feel. The bypass grooves terminate through the final 30% of the travel, forcing oil to only flow through the main piston, and providing a significant increase of bottom-out resistance to cushion any hard hits. Our goal is to inspire confidence next time you send it big thanks to the extra support.

FOX’s QS technology allows you to adjust the compression and rebound damping with ease to suit the snow conditions. Three positions keep the adjustment simple, so you focus on the ride instead of counting clicks. The FLOAT air spring and EVOL air chamber have an infinite range of spring adjustment. The air spring allows you to tailor the suspension specifically to your ride style or terrain. When the shock compresses through the travel, the spring force ramps up due to the progressive nature of air springs. If you ride aggressively and want a bottomless feel, the FLOAT 3 EVOL QS shock package is for you.

Maximize the power-to-weight ratio of your sled by bolting on the new FOX Burandt Series shocks.

Complete your Burandt Series 1.5 ZERO QS suspension kit with the matching ski shock kits, 850-02-027.

Adjustments FLOAT air spring (front and rear track)
EVOL air chamber (rear track)
QS3 – 3 position compression (front track), with lockout mode (rear track)
QSR – 3 position rebound (front track)
Features Burandt specific calibration
Optimized lightweight shock design
Spiral groove bypass
One-piece, aluminum spherical bearings
High-flow velocity-sensitive damping
Fully re-buildable and re-valvable
Front Track Extended Length 11.950
Front Track Compressed Length 8.190
Front Track Travel 3.460
Rear Track Extended Length 17.110
Rear Track Compressed Length 11.540
Rear Track Travel 5.570
Air Spring Pressures EVOL - 170psi
Top Mount Eyelet
Bottom Mount Eyelet
Reservoir Piggyback
Fitment notes Track (Front & Rear)
