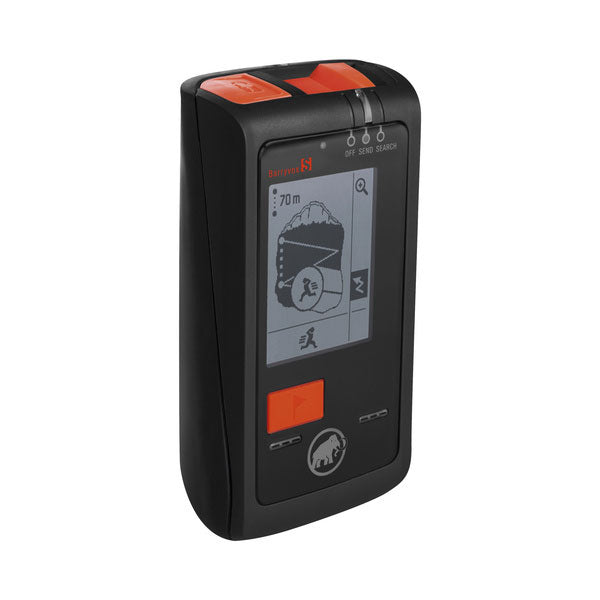

Mammut Barryvox S Avalanche Transceiver

Mammut Barryvox S Avalanche Transceiver


Digital/analog combo device with three antennas. The new Barryvox‚® S has a large receiving bandwidth and an effective search strip width of 70 meters. It offers users a large, simple interface and intuitive operation.

The Smart Search function provides clear instructions thanks to a simple operating concept and quick, precise searching. The Barryvox‚® S includes the Rescue SEND function to protect non-searching rescuers. In the event of a secondary avalanche, the device automatically switches to SEND in order to locate buried rescuers. The Barryvox‚® S is also equipped with a Smart Search function, which interacts with the actions of searching rescuers.


  • Height: 27 mm

  • W-Link frequency: 869.8 MHz

  • Width: 67 mm

  • Length: 115 mm

  • Battery life: Alkaline: around 300 hours SEND|Lithium: around 400 hours SEND

  • Batteries included: Yes

  • Sending frequency: 457 kHz

  • Analog search strip width: 100 m

  • Digital search strip width: 70 m

  • Buried subject marking: mark|unmark

  • EN standards: EN 300718

  • Warranty: 2-year warranty; additional 3-year Mammut guarantee if registered year

  • Battery type: Alkaline and lithium 3 x AAA 1.5 volt

  • Made in Switzerland: 100% Made in Switzerland, produced and developed in Switzerland

  • Effective digital search strip width: 70 meters

  • Digital receiving range: 70 meters

  • Extended search range: extended receiving bandwidth (analog): up to 95 m; Extended search strip width (analog): 100 m

  • Circular receiving field: almost identical receiving range for X and Y antennas

  • Lithium-enabled: also works with lithium batteries: Less risk of leakage. More stable in low temperatures. Longer battery life (350 hours SEND)

  • Display: display with background lighting, very easy to read even when wearing polarized glasses

  • Acoustic search guidance: allows the rescuer to visually search the avalanche field

  • Reverse direction function to avoid 180-degree search errors

  • Group test with clear instructions

  • Visual interface: shows distance, direction and number of buried subjects

  • Design: ergonomic, impact-proof and break-proof. Can be operated while wearing gloves

  • Device tests: automatic self-test and function test

  • Smart search interacts with rescuer`s action during the search, making searching simpler and more reliable

  • Multiple buried subjects: digital signal processing in the event of several buried subjects

  • Buried subjects can be selected from a list, marked (MARK) and unmarked (UNMARK)

  • Automatic switching from send to search (Auto Revert): if a rescuer does not move for 4 minutes, we assume a secondary avalanche and the device switches to SEND mode (motion-sensor controlled)

  • Rescue SEND: Protective function for non-searching rescuers. In the event of a secondary avalanche it automatically switches to SEND to allow the rescuer to be located

  • Auto guidance: device continues to guide the rescuer to the buried subject in the event of signal failures or overlaps

  • Vital data: 3D sensor helps the rescuer concentrate his or her resources on the buried subjects with the highest chance of survival

  • Advanced search settings: individually configurable search settings: pro search, acoustic and visual guidance; automatic switching from search to send (Auto Revert)

  • Alternative search mode (analog mode) helps in resolving demanding search scenarios

  • Personalization: start screen and user texts (for example, owner information) can be personalized

  • Attachment: includes highly functional Barryvox carrying system

  • W-Link: Additional communication channel for improved search performance

  • Manage the device fleet via W-Link

  • updatable software

  • Operating temperature: -25‚° to +45‚° Celsius (-13‚° to +113‚° Fahrenheit)
